MK37 Series Reed Sensor

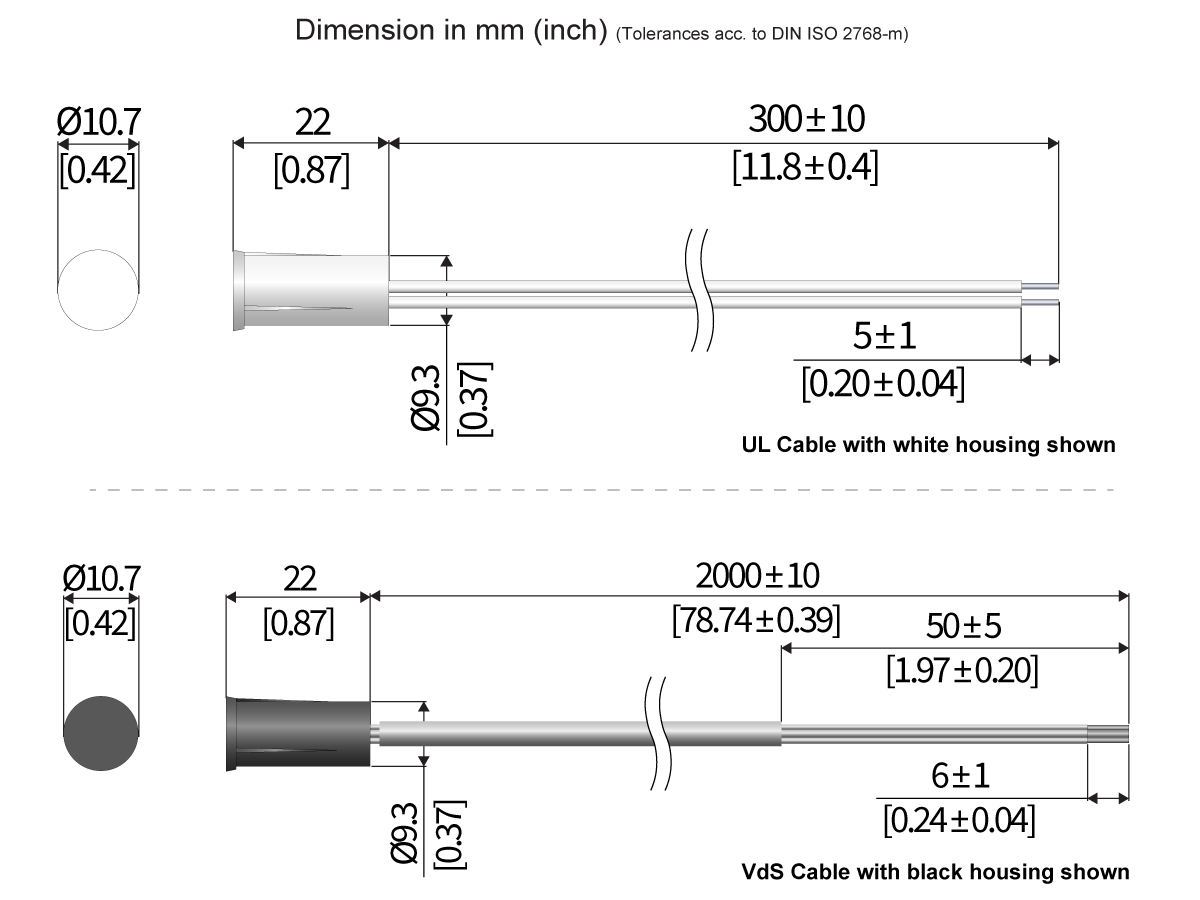

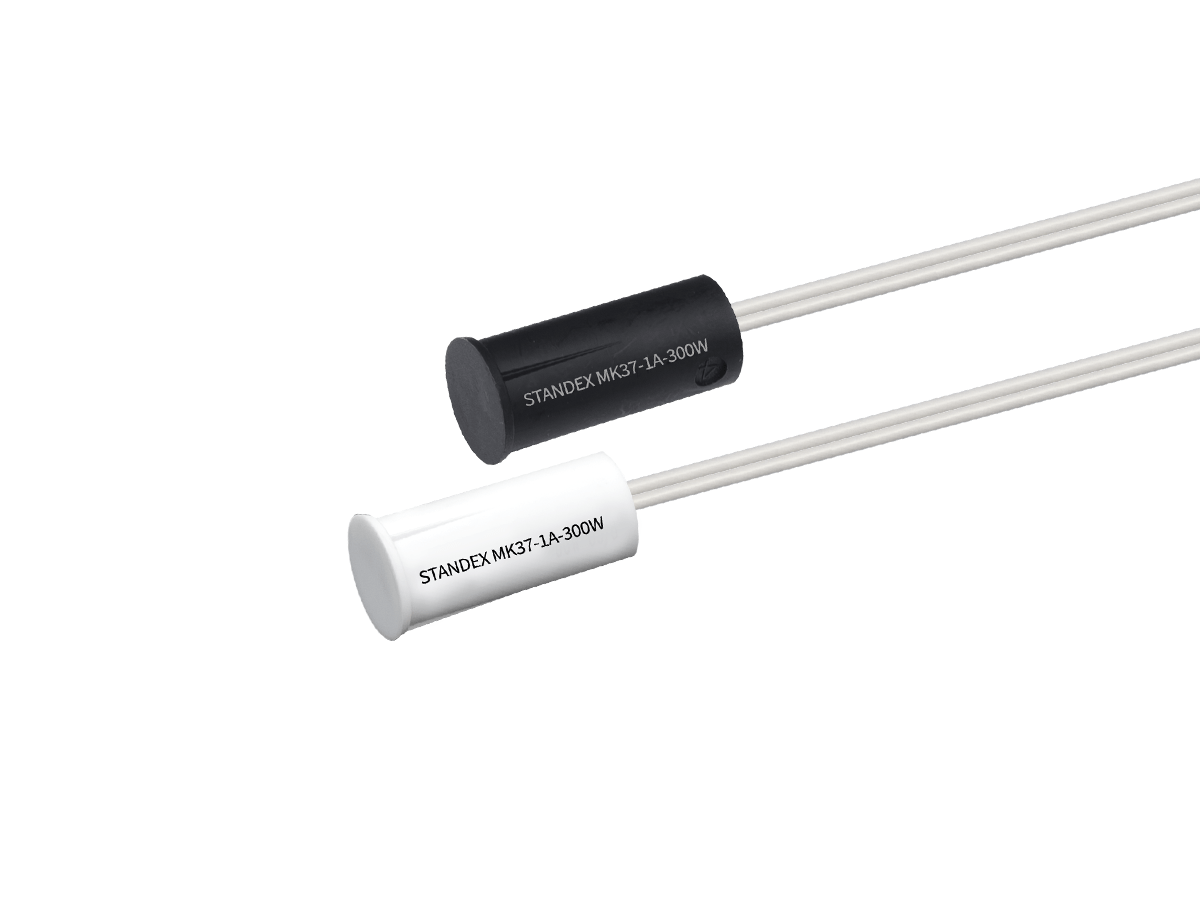

The MK37 Series Reed Sensor is a recessed magnetic sensor that is designed for installation in a ø3/8” hole or in a ø3/4” hole when using an adaptor. The sensor is designed for a press-fit installation that utilises crush ribs to retain the sensor in the installation hole as well as a matching magnet to suit. Housings are available in both white and black, along with cable options of a 2-conductor UL rated cable or a VdS compliant cable with a sabotage loop.
Sensor commonly paired with matching M37 magnet, or can be paired with the M36 magnet for reduced switching distance, or with the M38 magnet for larger switching distances.
- Normally Open and Normally Closed Sensor Logic
- Customisable Single Pole Double Throw Logic Available
- Normally Open Power Ratings 10 Watt / 180 Volts / 0.5 Amp
- Normally Closed Power Ratings 3W / 30 Volts / 0.2A
- Adapter Options Available When Installing in Ferromagnetic Material
- Customisation Options: Cable Harness Length, Connector Options
- Sensor commonly paired with mating M37 magnet
- Sensor can be paired with M36 magnet for reduced switching distance
- Sensor can be paired with M38 magnet for larger switching distances
| Operating Range | 10-20 AT |
| Contact Form | 1A (SPST) Normally Open (N.O.) |
| Rated Power Max. | 10W/180VDC/0.5A |
| Contact Form | 1B (SPST) Normally Closed (N.C.) |
| Rated Power Max. | 3W/30VDC/0.2A |
- Security panels and machine controls
- Building Automation and Security
- Home appliances
- Limit sensing
