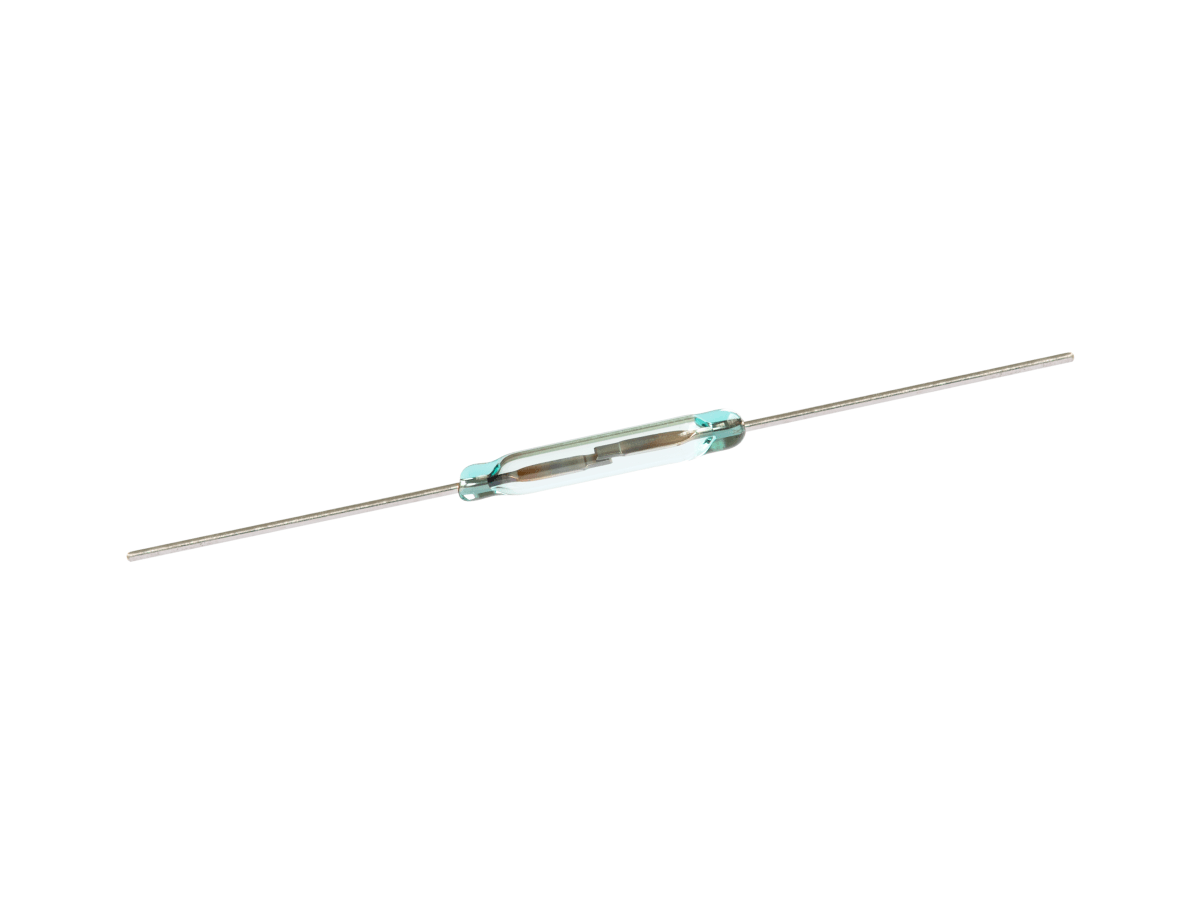

ORD324 Series Reed Switch
The ORD324 Series is a miniature SPST-NO (Form A) reed switch designed for general-purpose switching in medium-load applications. With a glass body length of 14.0 mm and a diameter of 2.2 mm, it supports switching voltages up to 200 VDC and currents up to 0.5 A, with a rated power of 10 W.
Hermetically sealed in inert gas, the ORD324 ensures long-term contact reliability and consistent performance. Its compact form factor and robust electrical ratings make it one of the most widely used switches in industrial, consumer, and automotive applications.
- SPST-NO (Form A) contact configuration for simple on/off switching
- Compact 14.0 mm glass body for space-constrained designs
- Hermetically sealed contacts in inert gas for enhanced durability and corrosion resistance
- Magnetically actuated with no external power required, ideal for low-power systems
- Rated for 10 W, 200 VDC, and 0.5 A switching current for medium-load applications
- Straight lead configuration for easy PCB mounting and mechanical stability

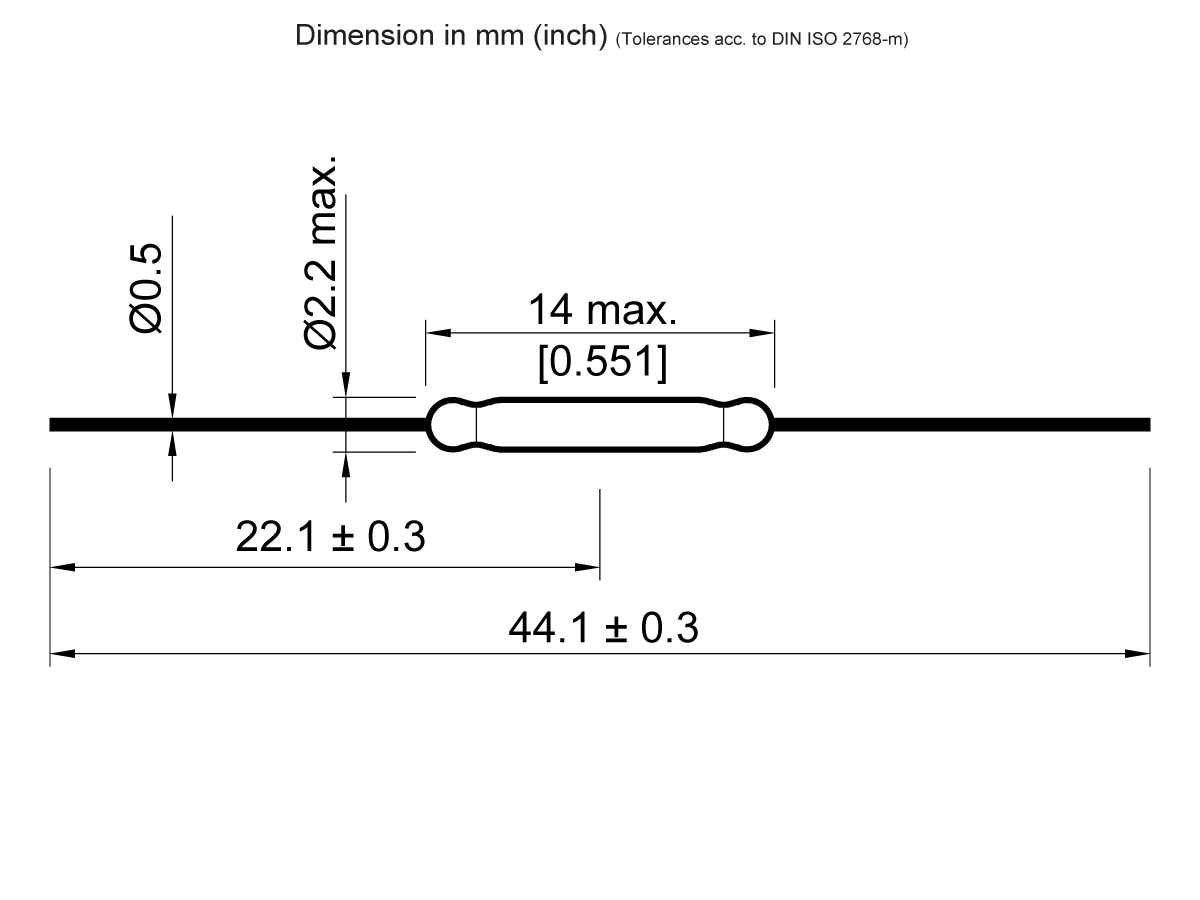

| Overall Length mm (inches) | 44.3 (1.744) |
| Glass Length Max. mm (inches) | 14.0 (0.551) |
| Glass Dia. Max. mm (inches) | 2.2 (0.086) |
| Lead Dia. mm (inches) | 0.5 (0.019) |
| Contact Form | 1A (SPST) Normally Open (N.O.) |
| Pull-In Range | 10-40 AT |
| Rated Power Max. | 10W/200VDC/0.5 Amp DC |
- Automotive Systems: Fluid level sensing, seatbelt latch detection
- Industrial Controls: Position sensing, relay logic, fault detection
- Consumer Electronics: Magnetic lid detection, proximity sensing
- Medical Devices: Compact switching in diagnostic and monitoring equipment
- Smart Appliances: Door interlock sensing, water level control
- Security Systems: Window/door sensors, tamper detection
