ORD611 Series Reed Switch

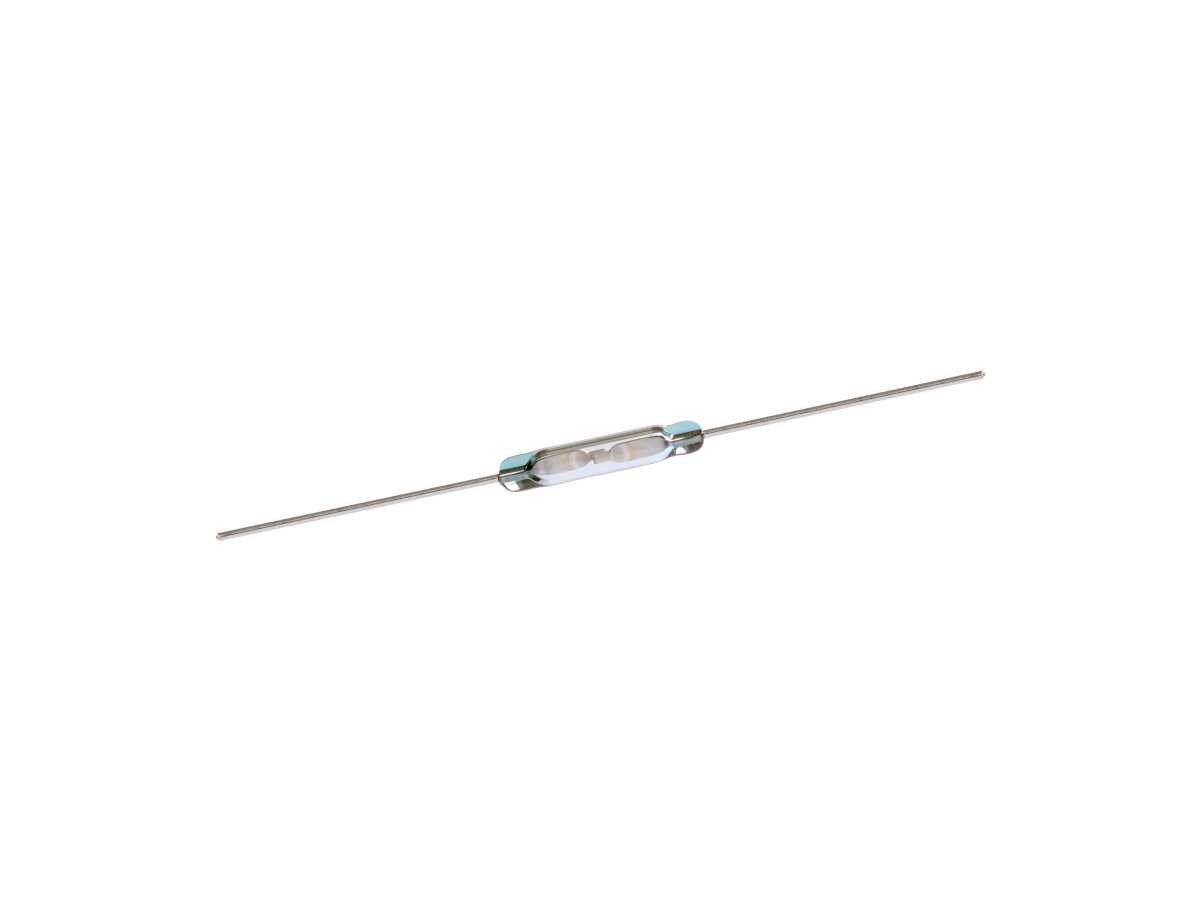

The ORD611 Series is an ultra-miniature reed switch designed for precision magnetic sensing in space-The ORD611 Series is a miniature SPST-NO (Form A) reed switch designed for reliable switching of medium-level loads in compact electronic systems. With a glass body length of 10.0 mm and a diameter of 2.0 mm, it supports switching voltages up to 200 VDC and currents up to 0.3 A, with a rated power of 10 W.
Hermetically sealed in inert gas, the ORD611 ensures long-term contact reliability and consistent performance. Its compact form factor and wide sensitivity range (8–40 AT) make it ideal for use in automotive, appliance, control, and instrumentation applications.
- SPST-NO (Form A) contact configuration for straightforward on/off switching
- Compact 10.0 mm glass body with 2.0 mm diameter for space-constrained designs
- Hermetically sealed contacts in inert gas for enhanced durability and corrosion resistance
- Magnetically actuated with no external power required, ideal for low-power systems
- Rated for 10 W, 200 VDC, and 0.3 A switching current for medium-load applications
- Wide pull-in sensitivity range (8–40 AT) for flexible magnetic actuation

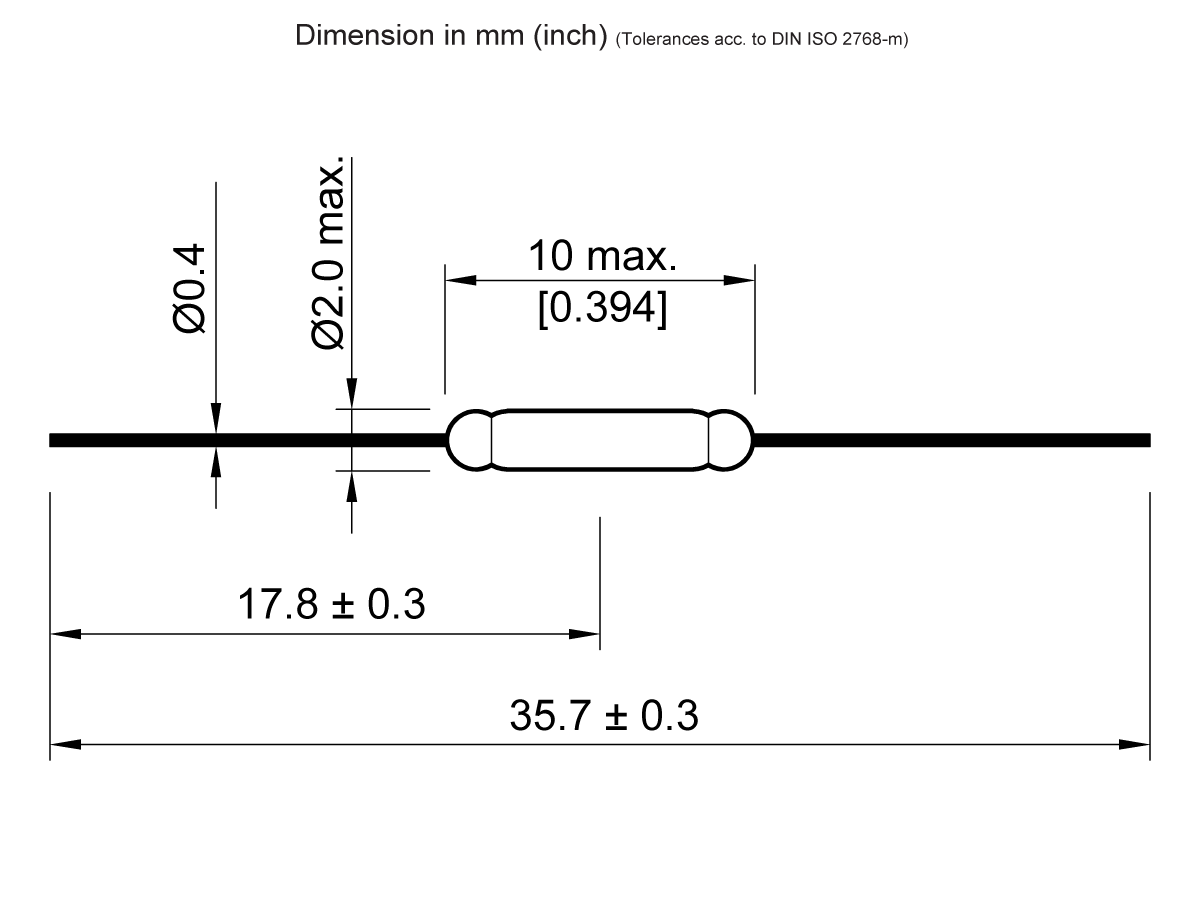

| Overall Length mm (inches) | 35.7 (1.405) |
| Glass Length Max. mm (inches) | 10.0 (0.393) |
| Glass Dia. Max. mm (inches) | 2.0 (0.078) |
| Lead Dia. mm (inches) | 0.4 (0.015) |
| Contact Form | 1A (SPST) Normally Open (N.O.) |
| Pull-In Range | 8-40 AT |
| Rated Power Max. | 10W/200VDC/0.3 Amp DC |
- Automotive Systems: Fluid level sensing, seatbelt latch detection
- Household Appliances: Door interlock sensing, water level control
- Control Equipment: Relay logic, fault detection
- Telecommunications: Line status detection, signal routing
- Instrumentation: Sensor triggering, position sensing
- Consumer Electronics: Magnetic lid detection, proximity sensing
