M36 Series Magnet

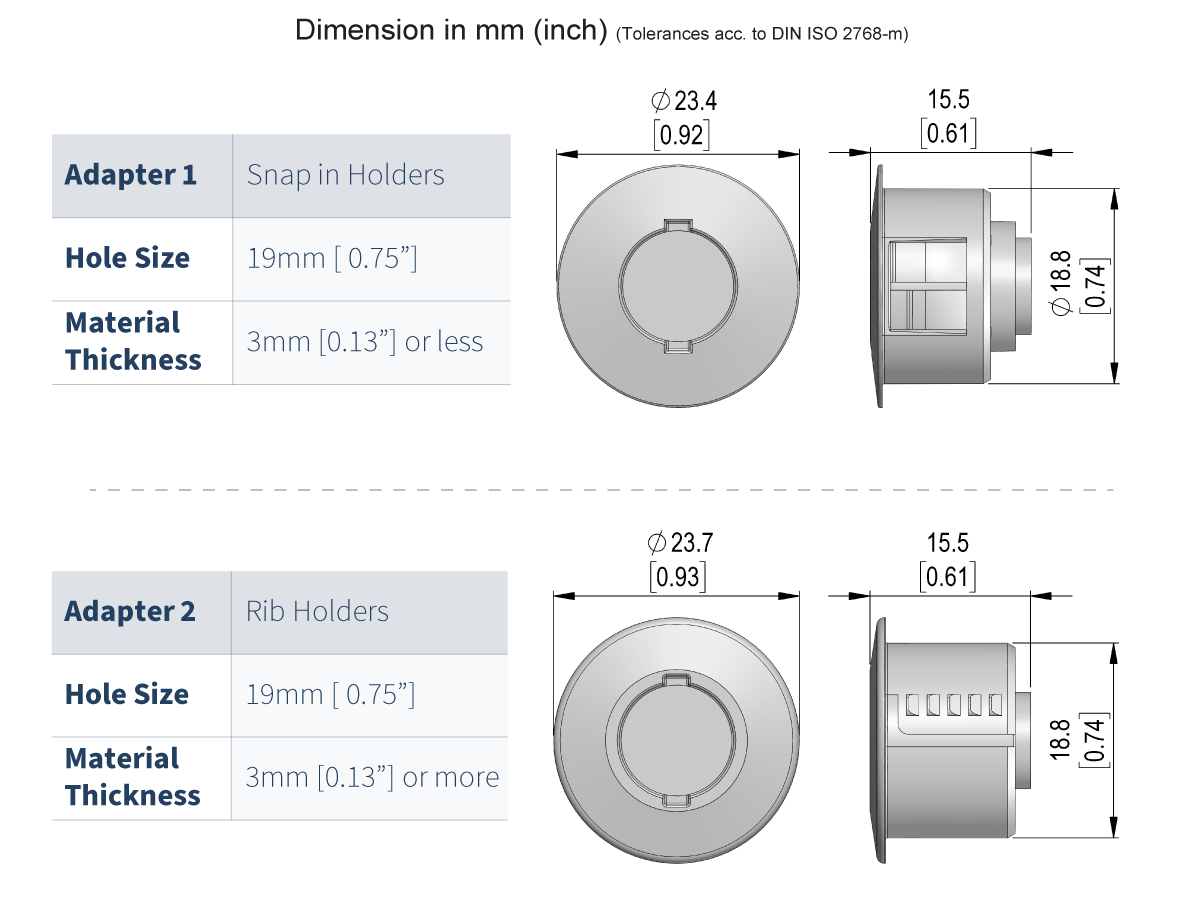

The M36 Series is a miniature cylindrical recessed sensor magnet designed for installation in a ø3/8” hole, or in a ø3/4” hole when using an adaptor. When using an adaptor, the sensor magnet is designed for a press-fit installation that utilises crush ribs to retain the magnet in the installation hole. Designed to pair with the MK36 Series reed sensor (sold separately), this magnet enables precise and repeatable actuation in systems requiring consistent magnetic triggering.

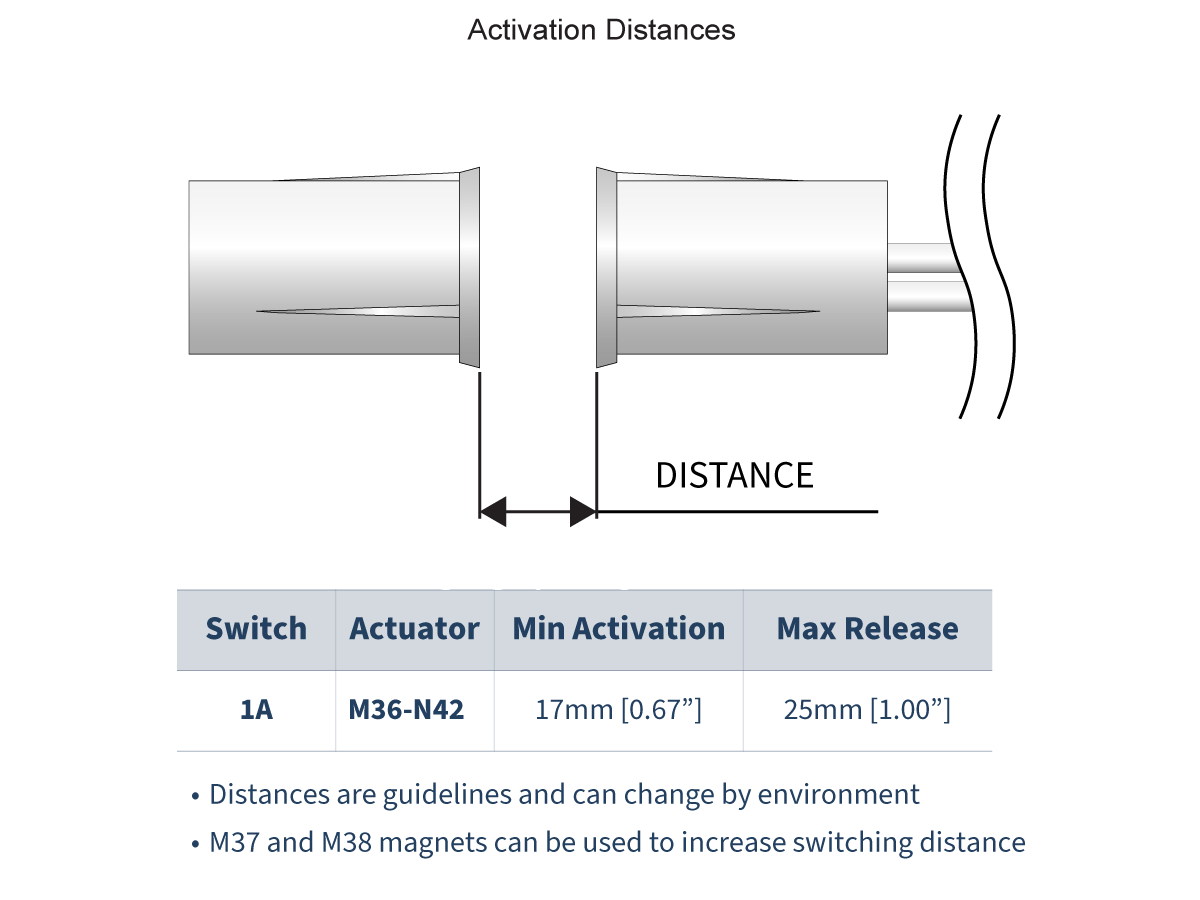

The magnet can also be paired with an MK37, MK38 sensor (sold separately) for greater switching distances. Magnet housings are available in both white and black.

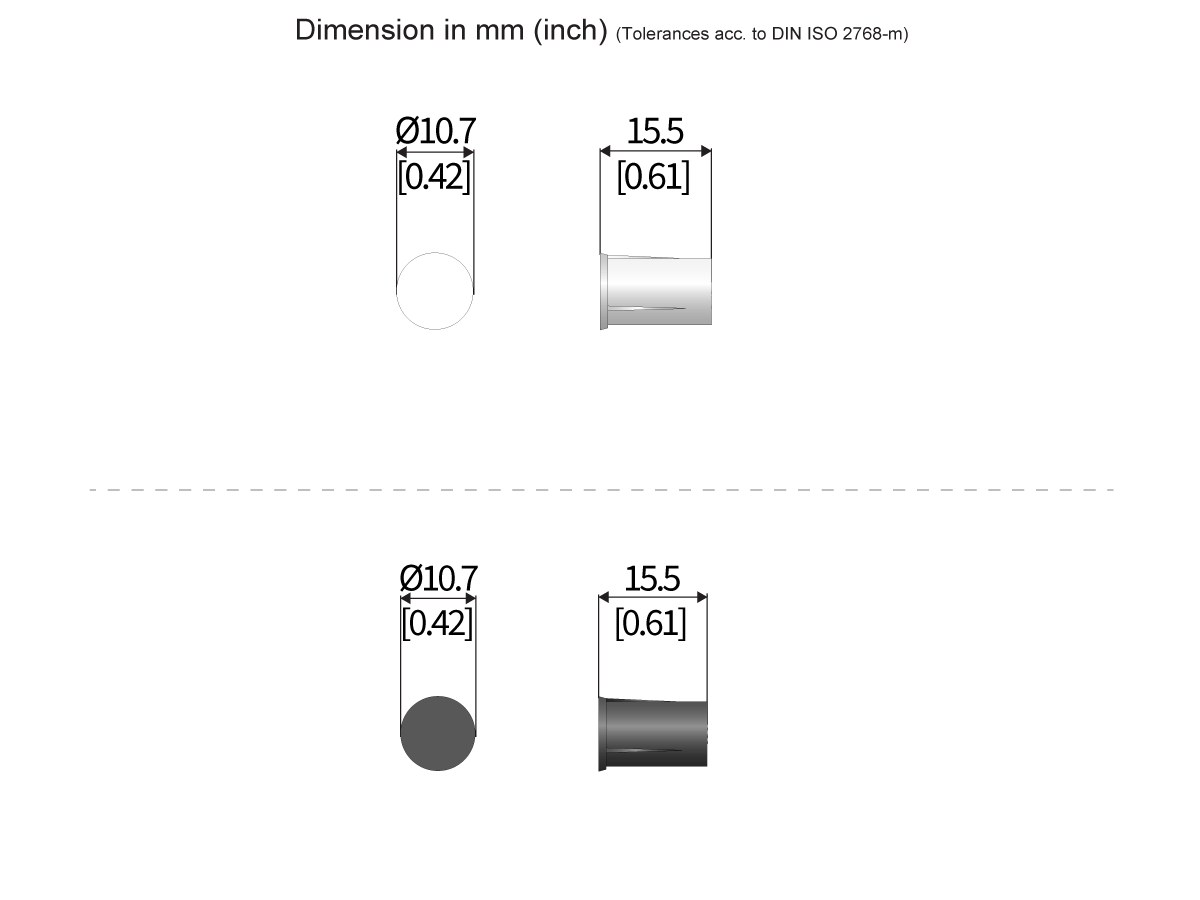

- Threaded press-fit housing (Dia. 10.7 x L 15.5mm) for secure, flush installation

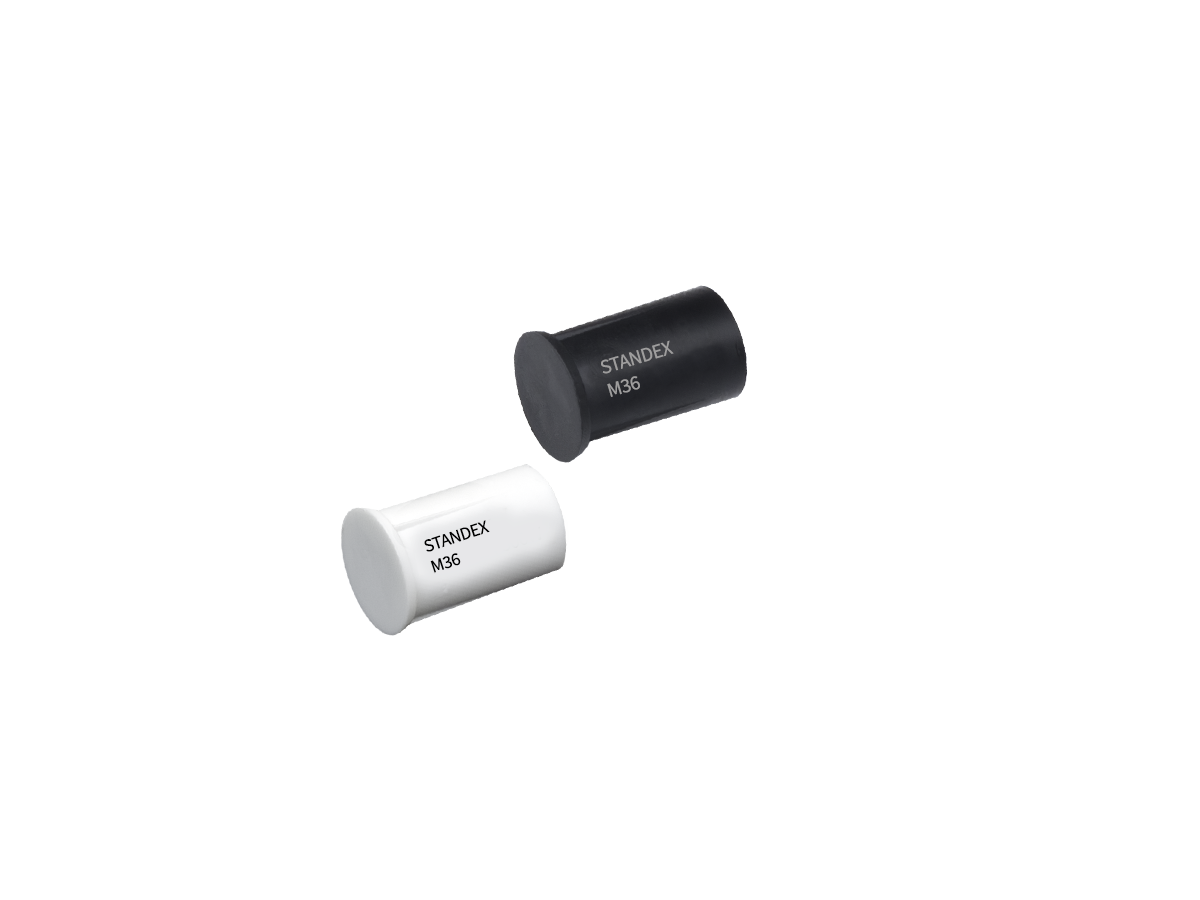

- Black or white housing option
- Optimised for MK36 Series reed sensors or can be paired with MK37 or MK38
- Reliable proximity sensing for motion and position detection
- Ideal for industrial automation, compact machinery, and OEM designs
| Length: | 15.0 mm (0.61″) |
| Diameter: | 10.7 mm (0.42″) |
- Security panels and machine controls
- Building Automation and Security
- Home Appliances
- Limit sensing
