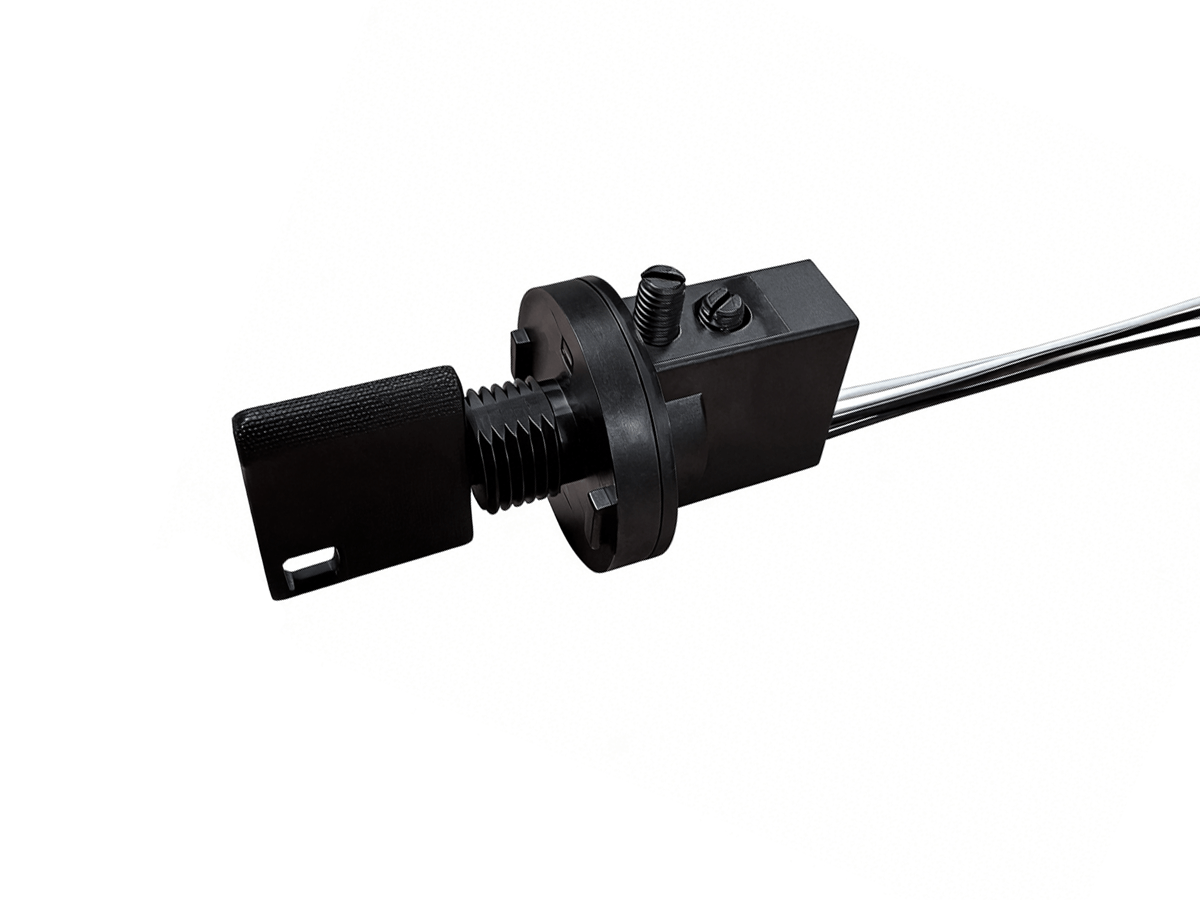

KS01 Series Key Switch Reed Sensor

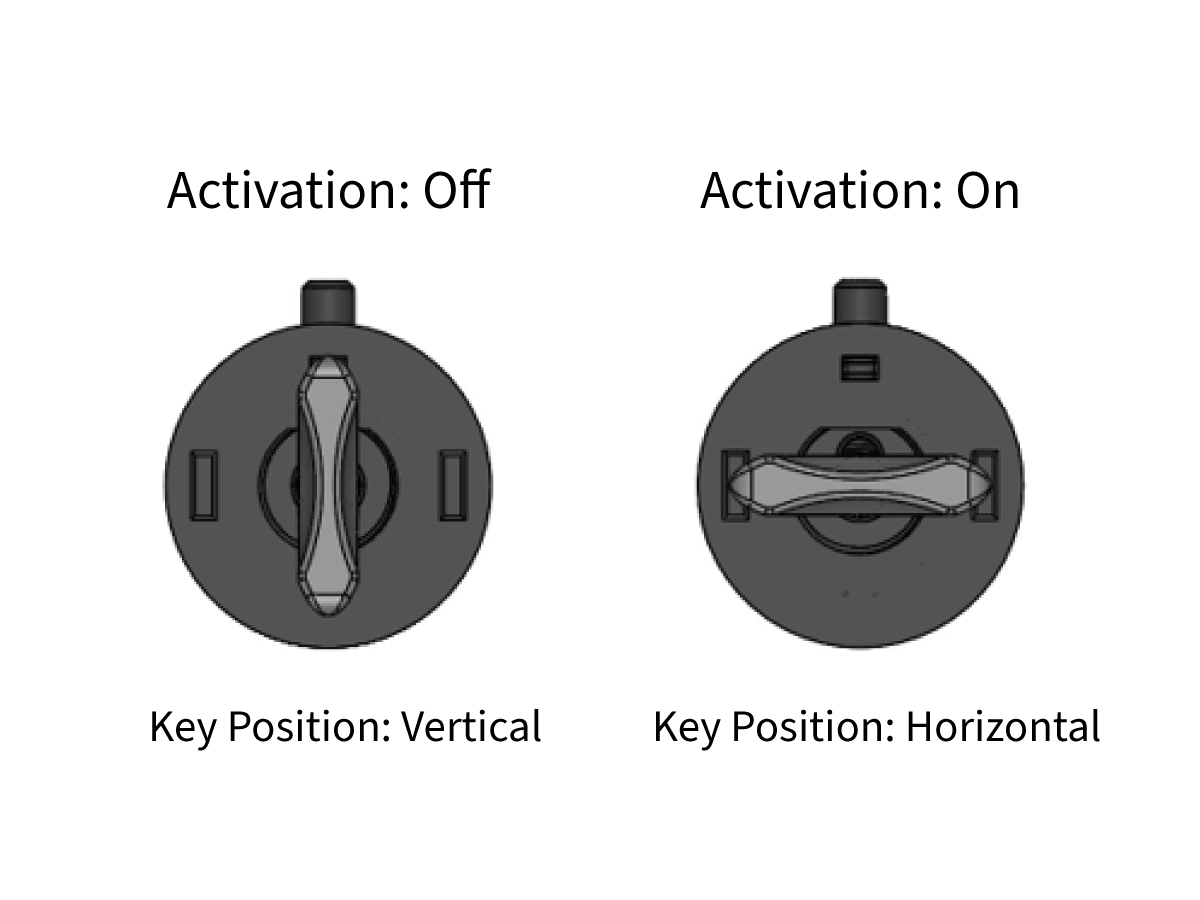

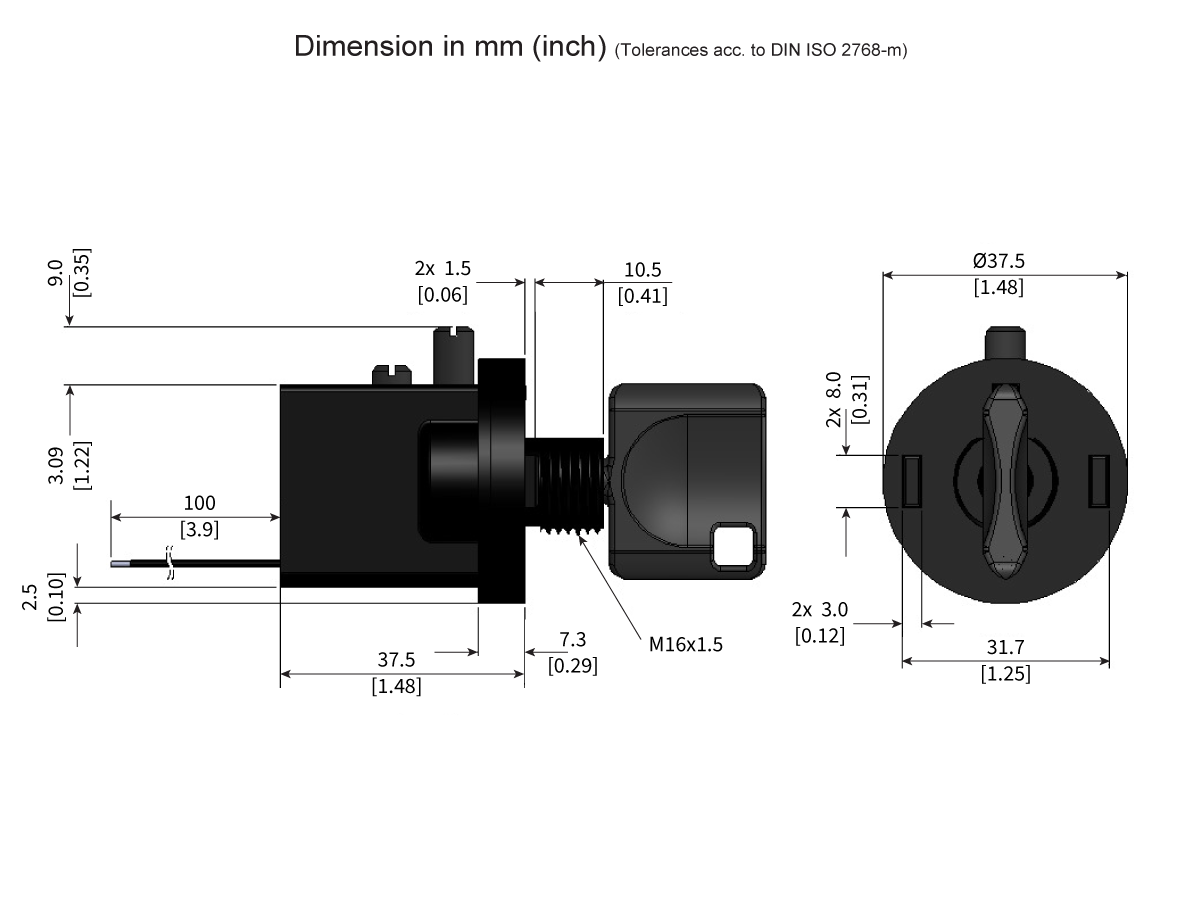

The KS01 series key switch is a panel-mount reed position sensor that is secured with a D-shape cut-out and M16 x 1.5 nut. The switching elements are potted into the housing, and an internal magnet is rotated by a separate piece key. The KS01 is IP67 rated, making the sensor the ideal candidate for harsh environments where normal mechanical contact key switches fail.
- Single and Dual Channel Options
- 0.5 Amp and 1.5 Amp switching current options
- IP67 Rated – Switching elements are sealed from the environment
- Customisation Options: Cable Harness Length, Connector Options, and Mating Key
- Higher Switching Voltages available depending on Cable Harness
| Contact Form | 1A (SPST) and 2A (SPST) Normally Open (N.O.) |
| Operating Range | 15~20 AT |
| Rated Power Max. | 10W/50VDC/0.5A (66 Model), 100W/50VDC/1.5A (88 Model) |
- Industrial Machinery
- On/Off Control
- Cleaning Machinery
- Off-Highway Equipment
